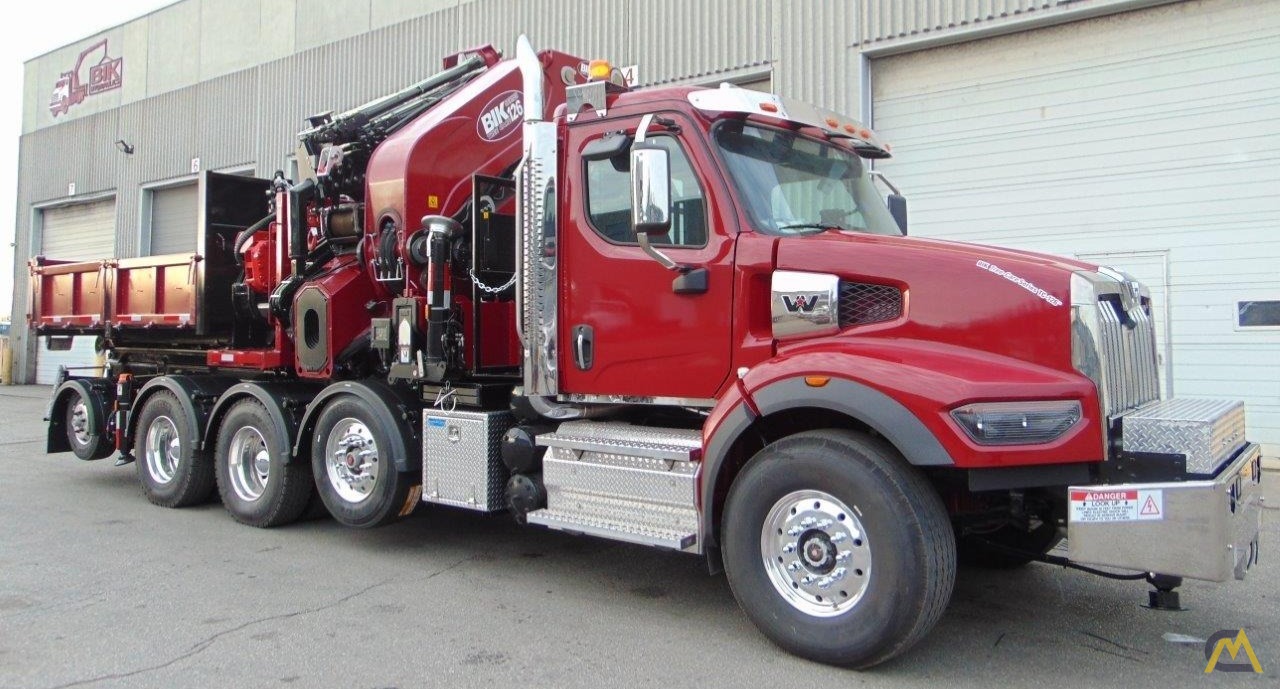

NEW BIK TREE-CARE SERIES TC-126 ON NEW WESTERN STAR 49X WITH BIK SERIES HOOK LIFT For Sale
Location: Milford, MA 01757, USA Get a Shipping Quote Get Finance QuoteBIK Authorized Dealer
Status | For Sale |
---|---|
Year | 2023 |
Manufacturer | BIK |
Model | TC-126 / HL-30S-62-SH Hook Lift |
Condition | New |
Ton (USt) | 100.00 |
Lifting Capacity | 36,800 lbs. (16,329 kg) |
Max. Outreach Capacity | 1,630 lbs. (739 kg) |
Main Boom Length | 16' - 67' (4.8 - 20.4 m) |
Jib Extension Length | 76' - 110' (23.1 - 33.5 m) |
Max. Tip Height | 126' (38.4 m) |
Horizontal Reach | 114' (34.4 m) |
Base Weight (GVW) | 79,000 lbs. (35,833 kg) |
Transmission Type | Automatic |
Truck Chassis Make | Kenworth T880 |
Engine | Paccar MX-13L |
Horse Power/kW | 515 |
Category | Articulating Knuckle Boom Cranes |
Show More | |
Hide |
DESCRIPTION
BOOM DETAILS
New – BIK Tree-Care Series TC-126 – 100 ton/m Knuckle Boom
-
8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn
-
Including (1) Grapple extention in jib
-
Boom Capacity of 2,050 lbs @ 126’ Vertical Reach
-
Main Boom Horizontal Capacity:
-
36,800 lb @ 16’
-
20,000 lb @ 23’
-
16,000 lb @ 33’
-
11,000 lb @ 47’
-
7,200 lb @ 67’
-
-
Jib Horizontal Capacity:
-
3,200 lb @ 76’
-
2,200 lb @ 100’
-
2,000 lb @ 104’
-
1,630 lb @ 110’
-
w/Grapple extn to 114’
-
-
Power-Link connecting rods at First Boom, Knuckle & Jib, –15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
-
Continuous Rotation and Dual Planetary Gear Motors
-
8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
-
Remote or Side Control Pad Operated 6 Stabilizers – a) 2- Extra Wide Main outriggers at pedestal – 29’ 10” span – hyd tilting when retracted
-
2- Rear Aux Stabilizers behind t/a drives – 26’ Span
-
Dual front bumper mtd Stabilizers at front integral truck frame extension
-
Dual Hydraulic Oil Coolers, high pressure return & filter, – 100-gallon oil tank with AW-46 Enviro Friendly Biodegradable Hydraulic Oil
-
Lifting winch plumbed to jib end of jib – 4-ton single part line capacity – Ability to completely fold up boom without disconnecting winch
-
Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stabilizer deployment control system
-
DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control
-
Scanreco Remote Control includes: 2-batteries, in-cab charger, back-up cord
-
Boom Factory Painted Dark Red/Burgundy prior to assembly
-
Installed back of cab, with custom engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards
-
Load Chart in FT. & LBS
-
32” long x 8’ wide – Carry Deck – mounted behind boom with (2) grapple saw holders
-
Engineer Stability tested & Certified for 360 Degree / 100% capacity load chart capacity in all area’s & zones when stabilizers are fully deployed

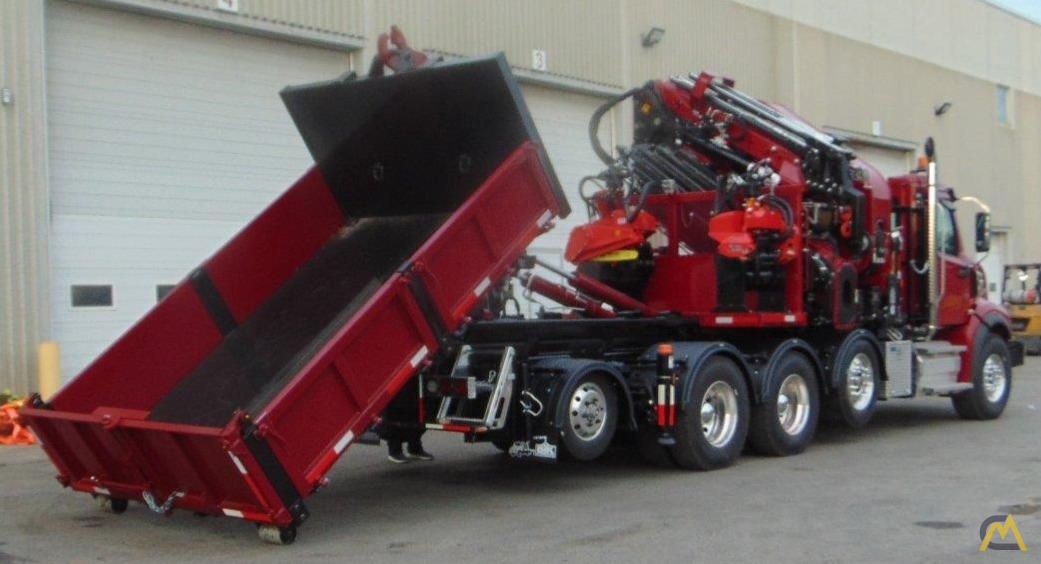

BIK HOOK LIFT SERIES: HL-30S-62-SH
-
30,000 lb capacity
-
62” hook height
-
sliding jib arm for containers ranging from 12 to 16’
-
56 degree dumping angle
-
cast rear rollers
-
In cab controls with cord
-
Hydraulic rear body locks
-
Cast bi-point articulation body supports
-
Painted black with Red Accents.
12’ Long x 8’ Wide
-
Steel Contractors bin
-
Dual fold down and removable sides
-
Removable barn doors at rear, custom removable
-
Ramps to drive on contractors equipment into bin
-
(6) pcs D-ring hooks inside box – painted black/red colors
TRUCK DETAILS
-
New Kenworth T800 4-axle Day Cab Tractor: 79,000 lb GVWR
-
PACCAR MX-13L Diesel – 515 HP – 1,850 ft/lb torque
-
Jake Brake
-
Eaton Ultrashift Plus Automated 18 spd trans.
-
20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
-
13,000 lb self steer lift axle ahead of t/a
-
46,000 LB Rears on Hendrickson Primax Air-Ride with 11R22.5 tires on Aluminum rims
-
Double Frame with integral front bumper frame extention (for front stabilizer)
-
Chrome single polished Exhaust pipe side of cab, Chromed Grille & Bumper
-
Single 120 gallon alum fuel tank
-
Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM CD radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups, Cab White, Air ride cab, full differential locks, sliding 5th wheel, exterior sun visor, etc…
Options Included:
-
(4) pcs – 2” PVC stab pads w/holder
-
(1) pc Alum storage box installed
-
Custom re-enforced manual extension for grapple
-
(1) New Mecanil SG-280 Graple saw with spare parts kit
-
Custom 2’ deck behind boom with grapple saw holder
-
2 to 3 day on site boom feature/function familiarization by a BIK tech
-
10’ Removable Deck Available
Other Options Also Available:
-
(additional) Mecanil SG 160 Grapple saw with spare parts kit & holder
-
(1) Additional Manual pull out boom extention for regular lifting hook (adds 5.5’ more reach )
-
(1) Aluminum single man self-levelling basket
Price On Request
